Dunlop Springride / Pneuride Air Bellows are designed to benefit customer applications where conventional pneumatic actuators are either not powerful enough, too bulky or environmental conditions would be demanding in maintenance. The primary market segments are in the industrial sector, comprising the paper industry, food industry, textile industry, building industry and more.

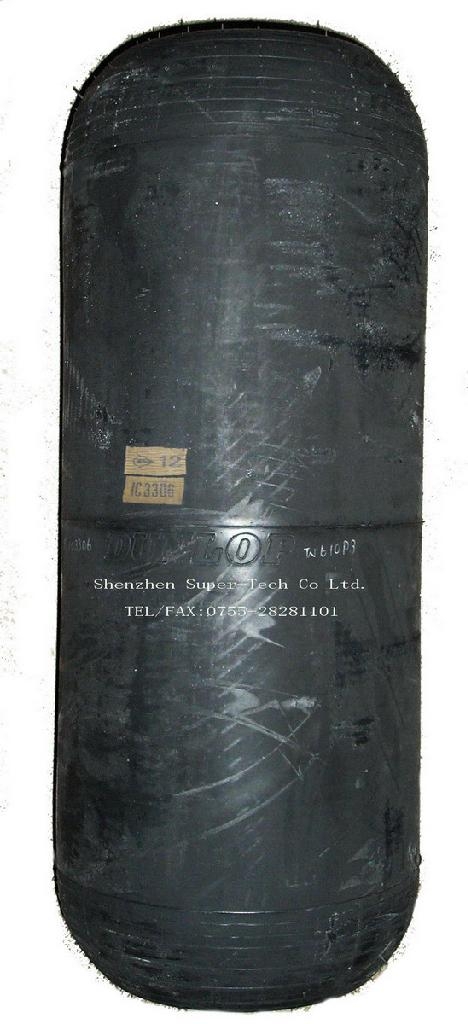

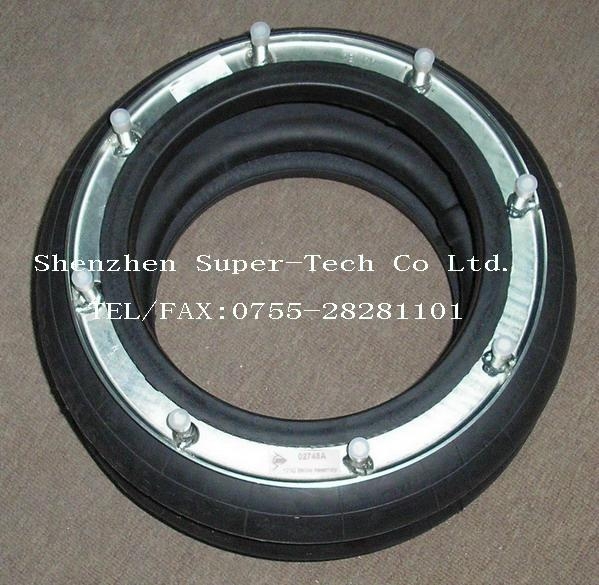

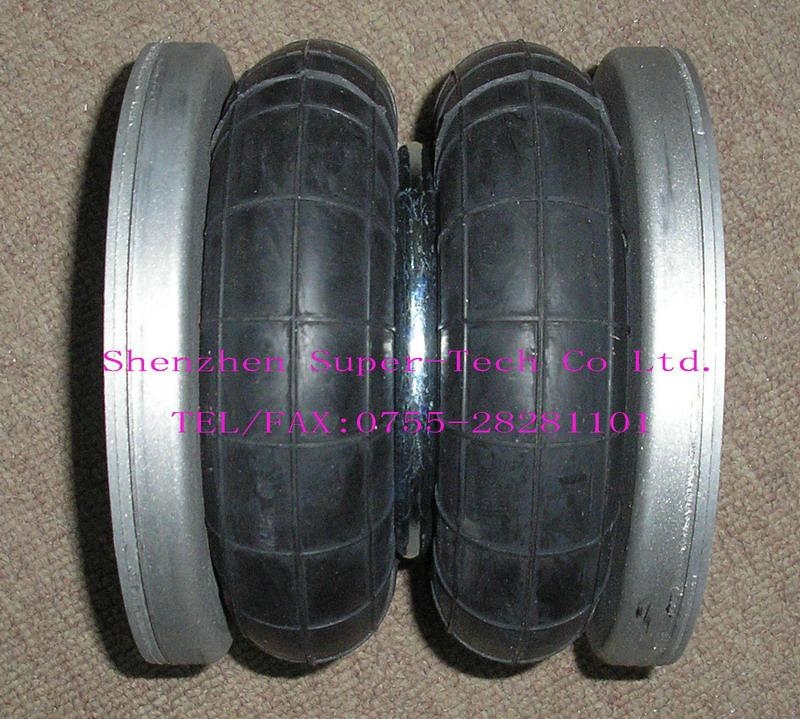

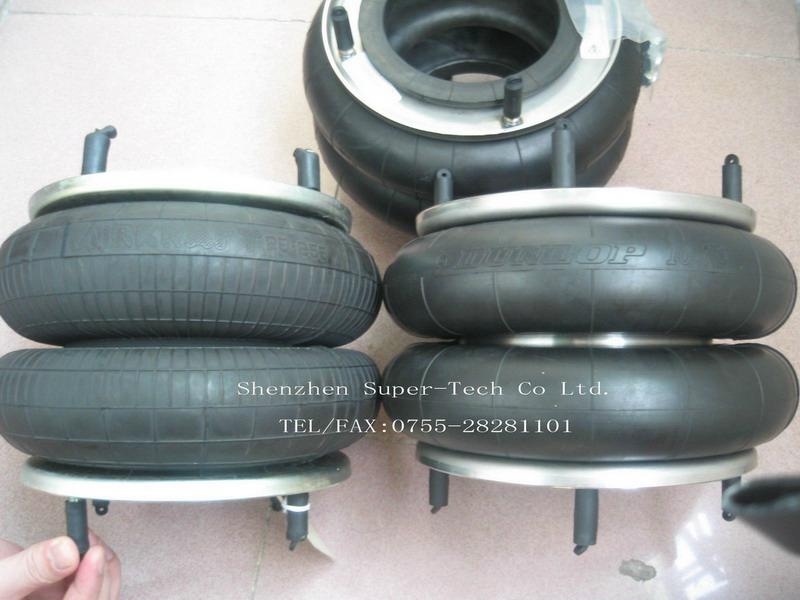

An air bellow is a single acting pneumatic actuator made of reinforced elastomer material. Each end is attached to a metallic cover containing mounting holes and air inlet ports. The products exist in single, double and triple convolutions.
Dunlop air bellows are extremely effective vibration isolators suitable for many types of equipment. By carefully selecting the air bellow with the correct natural frequency they can significantly reduce the transmitted vibration from most industrial and commercial applications.
| Bellow Assembly Type |
| 2.75" X 2 Aluminium |
| 2.75" X 3 Aluminium |
| 4.5" X 1 Aluminium |
| 4.5" X 2 Aluminium |
| 4.5" X 3 Aluminium |
| 6" X 1 Aluminium |
| 6" X 2 Aluminium |
| 6" X 3 Aluminium |
| 6" X 1 Steel |
| 6" X 2 Steel |
| 6" X 3 Steel |
| 8" X 1 |
| 8" X 2 |
| 8" X 3 |
| 9.25" X 2 |
| 10''X1 |
| 10" X 2 |
| 10" X 3 |
| 12" X 1 |
| 12" X 2 |
| 12" X 3 |
| 14.5" X 1 |
| 14.5" X 2 |
| 14.5" X 3 |
| 16" X 2 |
| 16" X 3 |
| 21.5'' x2 |
| |
|
